4 Heads Ceramic Pump Filling System with 0.5% Accuracy for Pharma

4 Heads Ceramic Pump Filling System with 0.5% Accuracy for Pharma
4 Heads Ceramic Pump Filling System with 0.5% Accuracy for Pharma
4 Heads Ceramic Pump Filling System with 0.5% Accuracy for Pharma 4 Heads Ceramic Pump Filling System with 0.5% Accuracy for Pharma 4 Heads Ceramic Pump Filling System with 0.5% Accuracy for Pharma 4 Heads Ceramic Pump Filling System with 0.5% Accuracy for Pharma 4 Heads Ceramic Pump Filling System with 0.5% Accuracy for Pharma 4 Heads Ceramic Pump Filling System with 0.5% Accuracy for Pharma 4 Heads Ceramic Pump Filling System with 0.5% Accuracy for Pharma 4 Heads Ceramic Pump Filling System with 0.5% Accuracy for Pharma 4 Heads Ceramic Pump Filling System with 0.5% Accuracy for Pharma 4 Heads Ceramic Pump Filling System with 0.5% Accuracy for Pharma 4 Heads Ceramic Pump Filling System with 0.5% Accuracy for Pharma 4 Heads Ceramic Pump Filling System with 0.5% Accuracy for Pharma 4 Heads Ceramic Pump Filling System with 0.5% Accuracy for Pharma 4 Heads Ceramic Pump Filling System with 0.5% Accuracy for Pharma 4 Heads Ceramic Pump Filling System with 0.5% Accuracy for Pharma 4 Heads Ceramic Pump Filling System with 0.5% Accuracy for Pharma
Grundlegende Informationen
Herkunftsort: China
Markenname: XQ
Zertifizierung: CE
Modellnummer: System XQX3
Min Bestellmenge: 1 Set
Preis: USD 500-2000 Per Set
Verpackung Informationen: Holzverpackung
Lieferzeit: 10 Tage
Zahlungsbedingungen: T/t
Versorgungsmaterial-Fähigkeit: 100 Sätze pro Monat
Bestpreis Kontakt
Anwendung: Aktualisierung des Pharma -Füllgeräts Füllbereich: Anpassen als Parameter
Material des Pumpenbaus: Edelstahl 316L Keramikteilmaterial: Zirkonium mit hoher Reinheit
Volumenanpassung: Vollautomatische Einstellung über Bildschirm Leistung: Besonders anfertigen
Hervorheben:

ceramic pump filling system

,

pharma filling pump 0.5% accuracy

,

4 heads ceramic filling pump

4 Heads Ceramic Pump Filling System with Automatic Volume Adjustment
Advanced Features
  • XQX3 Generation Technology: Fully-automated adjustment system with all parameters set and stored via HMI interface - no manual handle turning or gauge monitoring required.
  • Precision Ceramic Pump: Electric rotary ceramic plunger pump driven by closed-loop servo/stepper hybrid motor enables volume changes in under 2 seconds via touchscreen input.
  • Patented Kinematic Coupling: (Patent No. 2023*****) ensures single-digit µL resolution with 0.5% repeatability, matching the proven performance of XQX2 series.
  • Auto-Calibration System: Uses inline load-cell scale to self-correct for temperature drift or wear, maintaining long-term accuracy without operator intervention.
  • Recipe Memory: Stores 200+ volume presets with recall in under three seconds, eliminating change-over downtime on fully automatic production lines.
Key Applications
  • High-speed, automated filling volume adjustment with exceptional accuracy and stability
  • Contamination-free operation with quick disassembly/assembly capability
  • Ideal for packaging machine integration and modification
  • Specialized for electrolyte, pharmaceutical, biochemical reagent, and chemical liquid filling
Technical Specifications
Item No. -3 -6 -9 -12 -15 -18 -21 -24 -27
Pump Material Ceramic: High purity alumina (Al2O3), zirconia (ZrO2), silicon carbide (SiC)
Metal: 316L stainless steel
Filling Range 4-80µl 10-140µl 20-240µl 50-700µl 0.2-1.5ml 0.2-2.9ml 0.6-6ml 1-12ml 2-25ml
Bore Diameter Φ4 Φ5 Φ7 Φ10 Φ13 Φ15 Φ22 Φ25 Φ36
RPM 450 350 300
Accuracy Better than ±0.5%
Motor Type 2 phase 4 line No.42 2 phase 4 line No.57 2 phase 4 line No.86
Power Supply AC220V 50/60Hz (110V customizable)
Power Rate 75w 150w 240w
Product Image

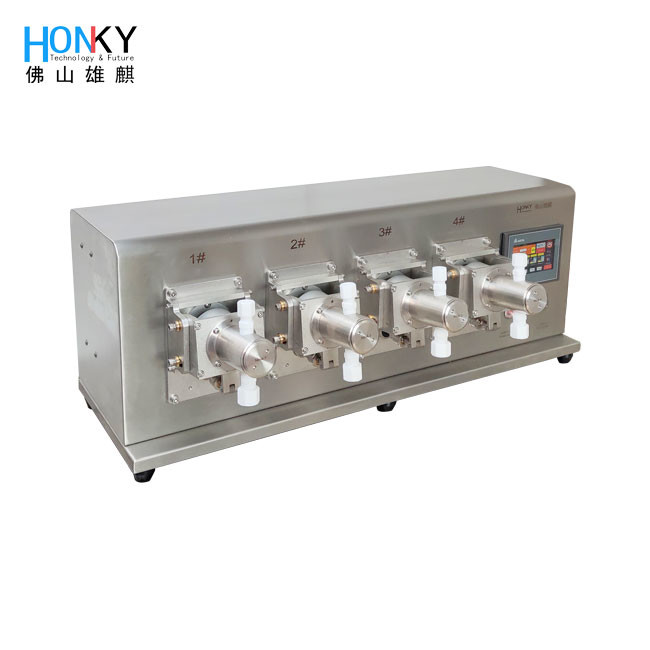

4 Heads Ceramic Pump Filling System with 0.5% Accuracy for Pharma 0
Ceramic Material Advantages
  • Low friction coefficient for increased packing life
  • Exceptional wear resistance
  • Superior corrosion resistance
  • Anti-galling surface properties
Industry Applications
  • ODM and OEM product design
  • Automatic manufacturing line integration
  • Cosmetic product packaging
  • Pharmaceutical and bio-reagent packaging
  • Laboratory liquid dispensing
  • Lithium battery electrolyte dispensing
  • Custom ceramic pump and component design
  • Specialized material filling applications

Größe und Tag:

keramische Füllpumpe 140ul,

Keramische Füllpumpe Wechselstroms 220V,

flüssige Ersatzteile der Füllmaschine-140ul
